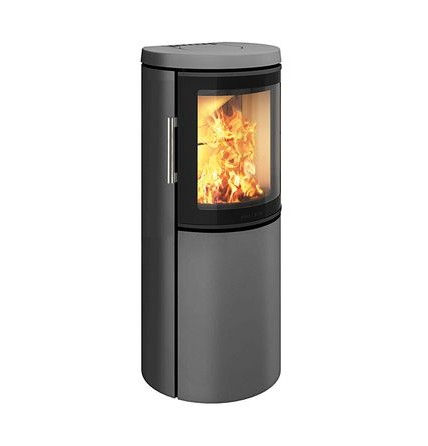

HWAM 2640m
With the HWAM 2600 series, the Danish designers Henrik Sørig and Tobias Jacobsen have created another beautiful stove series which is grand in elegance yet small in size. The pane rinse feature keeps the glass clean and ensures that the fascinating fire can be enjoyed through the slightly curved glass pane in the cast-iron door.
Combustion systems
Steel color
Black
Grey
Hwam 2640m
Technical specifications
Technical data
Energy efficiency class HWAM® Autopilot™A
HWAM® Autopilot™Yes
Efficiency, HWAM® Autopilot™ (%)80,0
Nominal heat output, HWAM® Autopilot™ (kW)4.7
Smoke outlet (Ø)5"/6"
Chimney draught, recommended, HWAM® Autopilot™ (Pa)12.0
Product measurements (cm)
Height100.0
Width43.0
Depth37.8
Combustion chamber27.0
Weight (kg)
Steel cladding, c/m door73.0
Connection measurements (cm)
From floor, top95.1
Fresh air kit
Combustion air system can be mounted, back (Ø 100 mm) - additional purchaseYes
Combustion air system can be mounted, bottom (Ø 100 mm) - additional purchaseYes
Distance to combustible materials (cm)
Mantel piece50.0
Distance to combustible materials Autopilot™ - insulated flue gas pipe (cm)
Behind7,5
Side16,0
Sides, in front of the stove40,0
In front95,0
Furnishing in front95,0
Corner, 45°7,5
Distance to combustible materials Autopilot™ - uninsulated flue gas pipe (cm)
Behind17,5
Side16,0
Sides, in front of the stove40,0
In front95,0
Furnishing in front95,0
Corner, 45°12,5
Approvals
EN 16510Yes
BImSchV Stufe 2Yes
DEFRA ExemptYes
Classificazione3 stelle
ECODESIGN CompliantYes
HETAS
